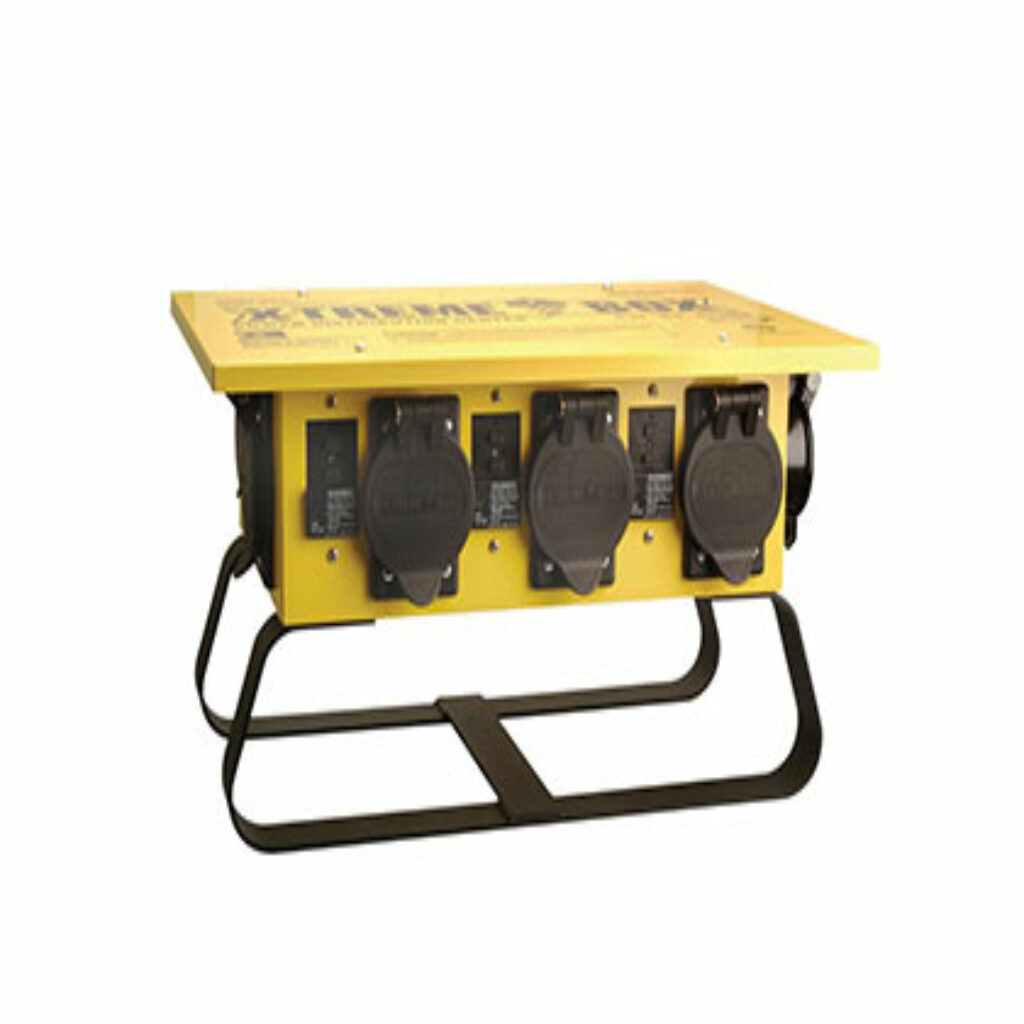

The Southwire X-TREME BOX power boxes; sometimes called spider boxes or spider box; are a portable power distribution center that allows for temp power to be provided to a job site in a more effective way as it allows for power to be distributed more locally. The 19703R02 is a single phase electrical distribution box that takes a 50 AMP 125/250v; 12; 000 watt input and distributes it to 6 20 AMP receptacles and 1 30 AMP receptacle. There is also a 50 AMP pass through for running portable power distribution boxes in series. It is a great temp power box with premium features like independent GFCI modules on the 20 amp outlets; premium breakers; and all-copper backplane.
- X-TREME BOX: cUL US safety listed temporary power box provides safe and rugged work-site power distribution
- INLET/INPUT: Powered by 1 50A; 125/250v; 12; 000 watts locking California style CS-63; compatible with 19180008 and 19190008 (cords sold separately)
- OUTLETS: 6 NEMA 5-20 2500-5000 watts; weatherproof; straight blade receptacles with independent GFCI modules & circuit breakers; 1 NEMA L6-30 7; 500 watts; weatherproof; twist-lock receptacle; with circuit breaker
- PASS-THROUGH: 1 50A 125/250v 12; 000 watts locking California style CS-63; for running boxes in series
- HEAVY DUTY 16 GAUGE steel stands up to rugged job sites with a CORROSION RESISTANT powder coat finish; rated to NEMA-3 with rainproof weather-strip
