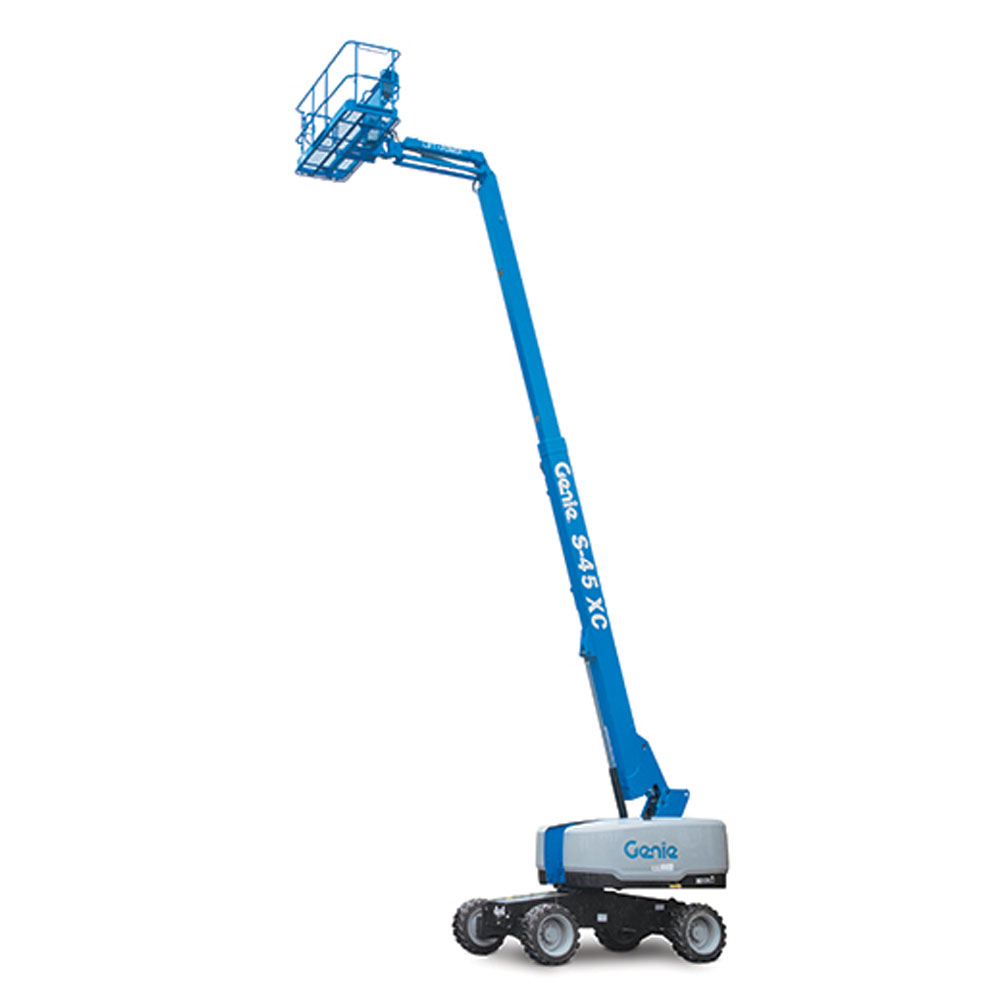

Genie® S®-45 XC™ telescopic boom lift is the redesigned Xtra Capacity™ version of the popular Genie S-45. It can perform a wider range of heavier lift tasks thanks to its dual lift capacity and full rough terrain capabilities.
Overview
- Full-time active oscillating axle and full-time positive traction for superior terrainability
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- 1.52 m (5 ft) robust articulating jib
- Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
- Automatic envelope control technology for a smooth operating envelope
- Zero-load field calibration and onboard diagnostics maximize serviceability
Specifications
- Max Working Height: 50 ft 6 in | 15.56 m
- Max Horizontal Reach: 36 ft 2 in | 11.02 m
- Below Ground Reach: ft 2 in | 1.27 m
- Platform Capacity: 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted4
- Machine Width and Length: 8 ft 2 in, 31 ft 1 in | 2.49 m, 9.47 m
